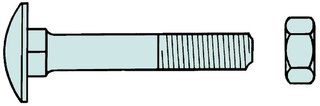

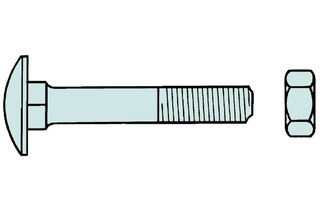

Flachrundschrauben DIN 603

mit 4-kant Ansatz und 6-kant Mutter

Kopfform: Flachrundkopf Material/Oberfläche: Stahl verzinkt

Artikel	Gewinde	Länge	Packung
85.274.515	M 5	15 mm	500
85.274.520	M 5	20 mm	500
85.274.525	M 5	25 mm	500
85.274.530	M 5	30 mm	500
85.274.535	M 5	35 mm	200
85.274.540	M 5	40 mm	200
85.274.545	M 5	45 mm	200
85.274.550	M 5	50 mm	200
85.274.555	M 5	55 mm	200
85.274.560	M 5	60 mm	200
85.274.570	M 5	70 mm	200
85.274.580	M 5	80 mm	200
85.274.620	M 6	20 mm	500
85.274.625	M 6	25 mm	500
85.274.630	M 6	30 mm	500
85.274.635	M 6	35 mm	200
85.274.640	M 6	40 mm	200
85.274.645	M 6	45 mm	200
85.274.650	M 6	50 mm	200
85.274.655	M 6	55 mm	200
85.274.660	M 6	60 mm	200
85.274.665	M 6	65 mm	200
85.274.670	M 6	70 mm	200
85.274.680	M 6	80 mm	200
85.274.690	M 6	90 mm	100
85.274.820	M 8	20 mm	200
85.274.825	M 8	25 mm	200
85.274.830	M 8	30 mm	200
85.274.835	M 8	35 mm	200
85.274.840	M 8	40 mm	200
85.274.845	M 8	45 mm	200
85.274.850	M 8	50 mm	200
85.274.855	M 8	55 mm	200
85.274.860	M 8	60 mm	200
85.274.865	M 8	65 mm	200
85.274.870	M 8	70 mm	200
85.274.880	M 8	80 mm	200
85.274.890	M 8	90 mm	100
85.274.1025	M 10	25 mm	200
85.274.1030	M 10	30 mm	200
85.274.1035	M 10	35 mm	100
85.274.1040	M 10	40 mm	100
85.274.1050	M 10	50 mm	100
85.274.1055	M 10	55 mm	100
85.274.1060	M 10	60 mm	100
85.274.1070	M 10	70 mm	100
85.274.1080	M 10	80 mm	100
85.274.1090	M 10	90 mm	100
85.274.1240	M 12	40 mm	100
85.274.1250	M 12	50 mm	100
85.274.1260	M 12	60 mm	100
85.274.1270	M 12	70 mm	50
85.274.1280	M 12	80 mm	50
85.274.1290	M 12	90 mm	50
85.274.1660	M 16	60 mm	50
85.274.1670	M 16	70 mm	25
85.274.6100	M 6	100 mm	100
85.274.6120	M 6	120 mm	100
85.274.8100	M 8	100 mm	100
85.274.8110	M 8	110 mm	100
85.274.8120	M 8	120 mm	100
85.274.8130	M 8	130 mm	100
85.274.8140	M 8	140 mm	50
85.274.8150	M 8	150 mm	50
85.274.8160	M 8	160 mm	50
85.274.10100	M 10	100 mm	100
85.274.10110	M 10	110 mm	50
85.274.10120	M 10	120 mm	50
85.274.10130	M 10	130 mm	50
85.274.10140	M 10	140 mm	50
85.274.10150	M 10	150 mm	50
85.274.10160	M 10	160 mm	50
85.274.10180	M 10	180 mm	50
85.274.10200	M 10	200 mm	50
85.274.10220	M 10	220 mm	25
85.274.10240	M 10	240 mm	25
85.274.10260	M 10	260 mm	25
85.274.10280	M 10	280 mm	25
85.274.12100	M 12	100 mm	50
85.274.12110	M 12	110 mm	50
85.274.12120	M 12	120 mm	50
85.274.12130	M 12	130 mm	50
85.274.12140	M 12	140 mm	50
85.274.12150	M 12	150 mm	50
85.274.12160	M 12	160 mm	25
85.274.12180	M 12	180 mm	25
85.274.12200	M 12	200 mm	25
85.274.12220	M 12	220 mm	25
85.274.12240	M 12	240 mm	25
85.274.12260	M 12	260 mm	25
85.274.12280	M 12	280 mm	25
85.274.12300	M 12	300 mm	25
85.274.12360	M 12	360 mm	25
85.274.16100	M 16	100 mm	25
85.274.16120	M 16	120 mm	25
85.274.16160	M 16	160 mm	25
85.274.16180	M 16	180 mm	25
85.274.16200	M 16	200 mm	25
85.274.16220	M 16	220 mm	25
85.274.16240	M 16	240 mm	25
85.274.16280	M 16	280 mm	25
85.274.16300	M 16	300 mm	25
