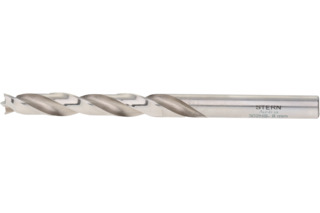

Dübelbohrer STERN 302 HS
QR-Code
QR-Code
zwei Hauptschneiden, zwei Vorschneider und Zentrierspitze, geschliffene Ausführung in HS-Qualität, für alle Holzarten geeignet
| Artikel | Bohrer-ø | Schaft | Länge | Nutzlänge |
|---|---|---|---|---|
| 23.010.03 | 3 mm | 3 mm | 60 mm | 30 mm |
| 23.010.04 | 4 mm | 4 mm | 75 mm | 39 mm |
| 23.010.05 | 5 mm | 5 mm | 85 mm | 50 mm |
| 23.010.06 | 6 mm | 6 mm | 91 mm | 54 mm |
| 23.010.07 | 7 mm | 7 mm | 107 mm | 66 mm |
| 23.010.08 | 8 mm | 8 mm | 115 mm | 72 mm |
| 23.010.09 | 9 mm | 9 mm | 123 mm | 78 mm |
| 23.010.10 | 10 mm | 10 mm | 130 mm | 84 mm |
| 23.010.11 | 11 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.12 | 12 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.13 | 13 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.14 | 14 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.15 | 15 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.16 | 16 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.18 | 18 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.20 | 20 mm | 10 mm / 30 mm | 140 mm | 110 mm |
| 23.010.35 | 3.5 mm | 3.5 mm | 70 mm | 36 mm |
| 23.010.42 | 4.2 mm | 4.2 mm | 75 mm | 39 mm |
| 23.010.45 | 4.5 mm | 4.5 mm | 80 mm | 45 mm |
| 23.010.55 | 5.5 mm | 5.5 mm | 91 mm | 54 mm |
| 23.010.65 | 6.5 mm | 6.5 mm | 100 mm | 55 mm |
